| Product Name | Liquid Crystal Display (LCD) |
| Supplier | JCVision |
| Model No. | JC-P46JPCA0 |
| Version | V1.0 |
| Date | |
I. Features
lIndustrial-Grade LCD Panel
Industrial-grade LED backlight, ultra-narrow bezel full-HD LCD panel. Features lower power consumption, higher stability, higher brightness, and stronger contrast. Delivers vivid colors, good color reproduction, and enhanced layering.
l3D Digital Image Processing Technology
Adopts 3D digital comb filtering and 3D digital noise reduction technologies, effectively reducing interference from image noise and edge artifacts. Ensures clear, smooth spliced images with bright and realistic colors.
l Motion Compensation
Utilizes interlaced signal frame-rate compensation algorithm, which analyzes and processes motion video on a frame-by-frame basis, performing signal compensation to eliminate motion blur and stuttering.
l One-Button Splicing
Built-in splicing technology with simple and convenient operation. Enables one-button switching between large-screen spliced display and single-unit display, improving user-friendliness—even for beginners.
l Pure Hardware Architecture
Adopts a full-hardware solution with no CPU or operating system, eliminating the risk of virus infection and ensuring high security.
l USB Upgrade
Supports USB 2.0 interface for firmware upgrades via mobile storage devices, automatically completing the update process for convenient maintenance and assembly.
l High Reliability, High Stability, Long Lifespan
Equipped with industrial-grade power modules, ensuring stable and reliable system operation, capable of 7×24-hour continuous operation for over 60,000 hours.
II. Technical Specifications
| Model | JC-P46JPCAO |
| Bezel Width (Splicing Gap) | ≤3.5mm |
| Splicing Configuration | Any row × any column |
| LCD Panel | Size | 46" |
| Aspect Ratio | 16:9 |
| Resolution | 1920×1080 |
| Active Display Area | 1018.08(H)×572.67(V) |
| Color Depth | 16.7M 8Bit |
| Backlight Type | LED Backlight (Direct-lit) |
| Brightness | 500cd/m2 |
| Contrast Ratio | 1200:1 |
| Response Time | 8ms |
| Viewing Angle | 178° |
| Horizontal Frequency | 54-69.5KHz |
| Vertical Frequency | 60Hz |
| Signal Interfaces | Video Color System | PAL/NTSC |
| CVBS (AV) Input | 1 channel: 1Vp-p, 75Ω, BNC × 1 |
| VGA Input | 1 channel: 1920×1080 (60Hz), downward compatible |
| HDMI Input | 1 channel: 1920×1080P, downward compatible |
| DVI Input | 1 channel: 1920×1080P, downward compatible |
| USB Input | 1 channel: USB 2.0, supports online firmware upgrade |
| Communication Interface | RS232: Input × 1 / Output × 2 |
| Power Input | Voltage Range | AC100～240V,50/60Hz |
| Power Consumption | <180W |
| Operating Environment | Temperature | 0℃～50℃ |
| Relative Humidity | 10％～90％ |
| Storage Environment | Temperature | -20℃～60℃ |
| Relative Humidity | 5％～90％ |
| Dimensions | LCD Panel | W1020.68x H575.27x116.4mm |
| Cabinet Thickness | 200mm ～ 400mm |
| Mounting Method | Cabinet-Mounted / Rack-Mounted / Wall-Mounted |
| Chassis Material | Cold-Rolled Steel Sheet / Aluminum Extrusion Profile |
| Weight | 20kg |
III. Interface Description
| NO | Description | NO | Description |
| 1 | USB Port(USB playback & firmware upgrade) | 7 | RS-232 output interface |
| 2 | HDMI input interface | 8 | RS-232 output interface |
| 3 | DVI input interface | 9 | AC power input interface |
| 4 | VGA input interface | 10 | Power ON/OFF switch |
| 5 | CVBS (composite video) input interface | | |
| 6 | RS-232 input interface | | |

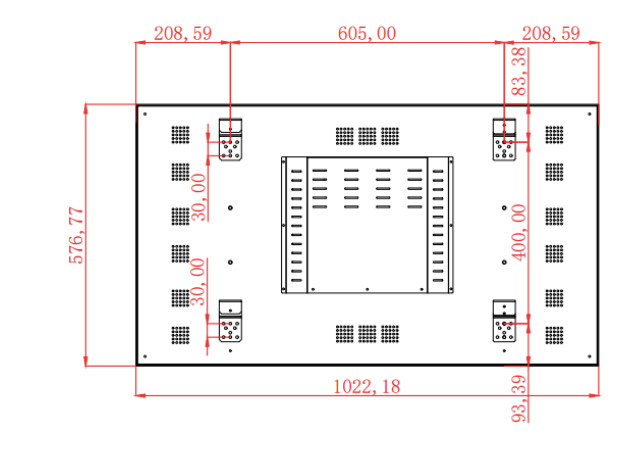

IV. Product Dimensions
V. Image Processing Capabilities
A. Frame Compensation Support

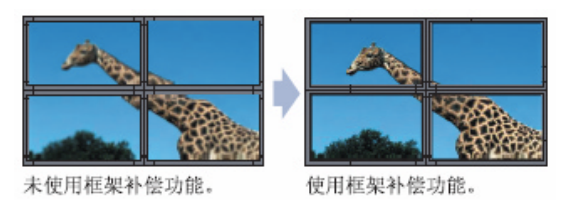

Built-in frame compensation adjusts graphics/images across the display wall to achieve a seamless, coherent presentation free from bezel obstruction.
B. Image Segmentation & Enlargement

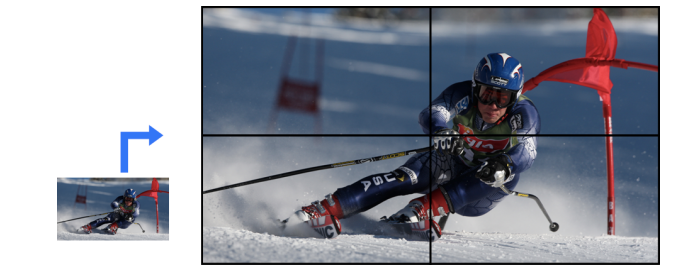

Supports enlargement up to a maximum of 15 rows × 15 columns.
VI. System Architecture & Operating Principle
